Getting Started with Red Hat Developer Hub - Part 1

Getting Started with Red Hat Developer Hub - Part 1

January 13, 2024

Introduction

Red Hat Developer Hub is based on Spotify’s open-sourced backstage project. Backstage is an open-source developer portal and a platform for building developer experiences. It’s designed to centralize and streamline various aspects of the software development life cycle, providing a unified platform for developers, product managers, and other stakeholders. Here are some key features and advantages of Spotify Backstage: Unified Platform, Service Catalog, Documentation Hub, Plugin Architecture and more.

Today, I’m excited to share my learnings on the journey of getting started with the Red Hat Developer Hub. Join me as we explore the how to deploy it using Helm chart, enabling diverse plugins, and configuring integrations with GitHub, ArgoCD, Open Cluster Management. To add a cherry on top, we’ll create a software template that opens a GitHub pull request to provision a database cluster using CloudNative-PG.

Installation

Deploying the Red Hat Developer Hub is a breeze, and Helm charts make it a cinch. First, add the helm chart repo for the developer hub. Then, we’ll download the values yaml since we need to update a few values accordingly.

helm repo add openshift-helm-charts https://charts.openshift.io/
helm show values openshift-helm-charts/redhat-developer-hub > values.yaml

Update the global.clusterRouterBase according to OpenShift router host and modify values if needed

1
2
3
4
5
6
7
8

global:
  auth:
    backend:
      enabled: true
      existingSecret: ""
      value: ""
  clusterRouterBase: apps.example.com
...

Install the helm chart with modified values

oc new-project developer-hub
helm install developer-hub developer-hub/developer-hub -f values.yaml

Wait for the developer hub and postgresql database pods to be in ready status

oc get pods
NAME                             READY   STATUS    RESTARTS   AGE
developer-hub-64d8cff99c-k8k9r   1/1     Running   0          2d
developer-hub-postgresql-0       1/1     Running   0          2d

Navigate to the developer hub in a web browser by grabbing the route host information as shown below

oc get routes
NAME            HOST/PORT                                         PATH   SERVICES        PORT           TERMINATION     WILDCARD
developer-hub   developer-hub-developer-hub.apps.example.com   /      developer-hub   http-backend   edge/Redirect   None

Voila, you have successfully deployed the developer hub!

Plugins

Red Hat Developer Hub’s power lies in its extensibility through plugins. Let’s delve into enabling some key plugins

In this post, I’ll we will cover how to integrate below plugins

  • Kubernetes
  • GitHub for authentication
  • Open Cluster management to show cluster details
  • ArgoCD for Sync status

Enable plugins

Developer Hub images are pre-packaged with some dynamic plugins. Most of these plugins are disabled by default since they must be configured. To enable plugins, add a package, set the disabled to false in the Helm Chart values under the dynamic plugins section

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

global:
  auth:
    backend:
      enabled: true
      existingSecret: ""
      value: ""
  clusterRouterBase: apps.example.com
  dynamic:
    includes:
      - dynamic-plugins.default.yaml
    plugins:
      - disabled: false
        package: ./dynamic-plugins/dist/backstage-plugin-catalog-backend-module-github-dynamic
      - disabled: false
        package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-security-insights
      - disabled: false
        package: ./dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
      - disabled: false
        package: ./dynamic-plugins/dist/backstage-plugin-kubernetes
      - disabled: false
        package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-argo-cd-backend-dynamic
      - disabled: false
        package: ./dynamic-plugins/dist/roadiehq-scaffolder-backend-argocd-dynamic
      - disabled: false
        package: ./dynamic-plugins/dist/roadiehq-backstage-plugin-argo-cd
      - disabled: false
        package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-ocm
      - disabled: false
        package: ./dynamic-plugins/dist/janus-idp-backstage-plugin-ocm-backend-dynamic
      - disabled: false
        package: ./dynamic-plugins/dist/roadiehq-scaffolder-backend-module-utils-dynamic
...

Re-install the chart with updated values

helm upgrade --install developer-hub developer-hub/developer-hub -f values.yaml

Verify if plugins are installed in the install-dynamic-plugins init container within the Developer Hub pod’s log

======= Skipping disabled dynamic plugin ./dynamic-plugins/dist/backstage-plugin-scaffolder-backend-module-gitlab-dynamic
======= Installing dynamic plugin ./dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
	==> Grabbing package archive through `npm pack`
	==> Removing previous plugin directory /dynamic-plugins-root/backstage-plugin-kubernetes-backend-dynamic-0.13.0
	==> Extracting package archive /dynamic-plugins-root/backstage-plugin-kubernetes-backend-dynamic-0.13.0.tgz
	==> Removing package archive /dynamic-plugins-root/backstage-plugin-kubernetes-backend-dynamic-0.13.0.tgz
	==> Merging plugin-specific configuration
	==> Successfully installed dynamic plugin /opt/app-root/src/dynamic-plugins/dist/backstage-plugin-kubernetes-backend-dynamic
======= Installing dynamic plugin ./dynamic-plugins/dist/backstage-plugin-kubernetes
	==> Grabbing package archive through `npm pack`
	==> Removing previous plugin directory /dynamic-plugins-root/backstage-plugin-kubernetes-0.11.0
	==> Extracting package archive /dynamic-plugins-root/backstage-plugin-kubernetes-0.11.0.tgz
	==> Removing package archive /dynamic-plugins-root/backstage-plugin-kubernetes-0.11.0.tgz
	==> Merging plugin-specific configuration
	==> Successfully installed dynamic plugin /opt/app-root/src/dynamic-plugins/dist/backstage-plugin-kubernetes
======= Installing dynamic plugin ./dynamic-plugins/dist/janus-idp-backstage-plugin-topology

Plugin Integrations

In the spirit of brevity and to ensure accuracy, I’ve posted the configuration code snippets for your convenience. However, for a more detailed and nuanced understanding of the integration process, I highly recommend referring to the official product documentation.

Important

Integration code snippets are added to the configmap; for reference, here is the complete configmap

Externalize configuration

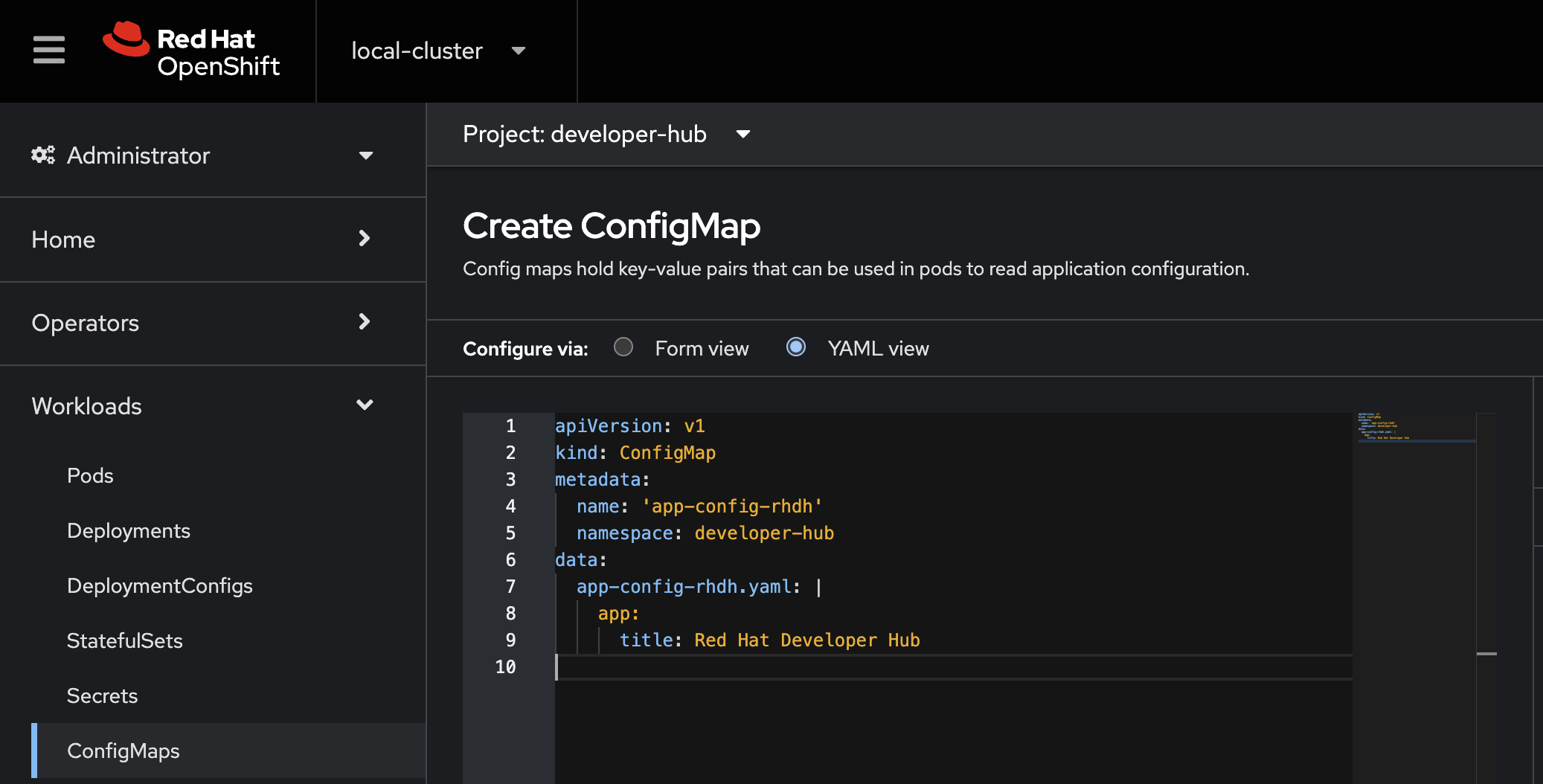

Create a configmap to add configuration to the developer hub as described in the documentation

Alt text
ConfigMap

Mount the ConfigMap, add extraAppConfig to the values file under upstream.backstage section

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

upstream:
  backstage:
    appConfig:
      app:
        baseUrl: 'https://{{- include "janus-idp.hostname" . }}'
      backend:
        baseUrl: 'https://{{- include "janus-idp.hostname" . }}'
        cors:
          origin: 'https://{{- include "janus-idp.hostname" . }}'
        database:
          connection:
            password: ${POSTGRESQL_ADMIN_PASSWORD}
            user: postgres
        auth:
          keys:
            - secret: ${BACKEND_SECRET}
    args:
      - "--config"
      - dynamic-plugins-root/app-config.dynamic-plugins.yaml
    command: []
    extraAppConfig:
      - configMapRef: app-config-rhdh
        filename: app-config-rhdh.yaml

Re-install the chart with updated values

helm upgrade --install developer-hub developer-hub/developer-hub -f values.yaml

GitHub Integration

Seamlessly connect your projects with GitHub by configuring the integration.

Create a secret named rhdh-secrets as mentioned in documentation with GitHub clientId, secret and token

oc create secret generic rhdh-secrets --from-literal=GITHUB_APP_CLIENT_ID=dummy --from-literal=GITHUB_APP_CLIENT_SECRET=dummy --from-literal=GITHUB_TOKEN=dummy

Mount the rhdh-secrets, add extraEnvVarsSecrets to the values file under upstream.backstage section

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

upstream:
  backstage:
    appConfig:
      app:
        baseUrl: 'https://{{- include "janus-idp.hostname" . }}'
      backend:
        baseUrl: 'https://{{- include "janus-idp.hostname" . }}'
        cors:
          origin: 'https://{{- include "janus-idp.hostname" . }}'
        database:
          connection:
            password: ${POSTGRESQL_ADMIN_PASSWORD}
            user: postgres
        auth:
          keys:
            - secret: ${BACKEND_SECRET}
    args:
      - "--config"
      - dynamic-plugins-root/app-config.dynamic-plugins.yaml
    command: []
    extraEnvVarsSecrets:
      - rhdh-secrets
    extraAppConfig:
      - configMapRef: app-config-rhdh
        filename: app-config-rhdh.yaml

Update the app-config-rhdh configmap and add below configuration

integrations:
  github:
    - host: github.com
      token: ${GITHUB_TOKEN}
auth:
  # see https://backstage.io/docs/auth/ to learn about auth providers
  environment: development
  providers:
    github:
      development:
        clientId: ${GITHUB_APP_CLIENT_ID}
        clientSecret: ${GITHUB_APP_CLIENT_SECRET}

Re-installing the chart will recreate a new pod with updated values and configmap

helm upgrade --install developer-hub developer-hub/developer-hub -f values.yaml

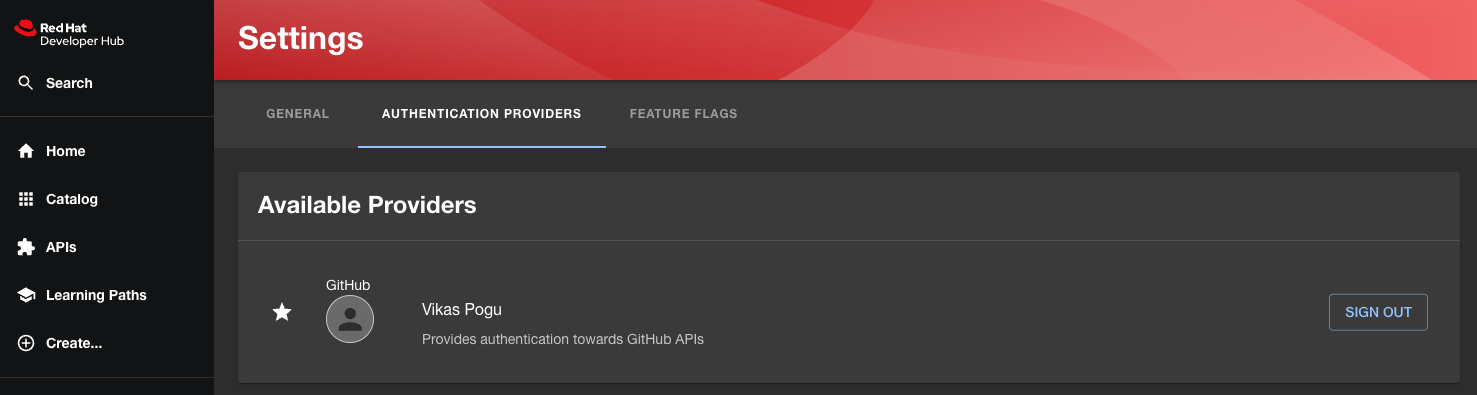

Alt text
GitHub Auth

Navigating Clusters with Open Cluster Management

Open Cluster Management extends our reach to manage and monitor multiple clusters effortlessly. To enable we can add kubernetes configuration and reference the cluster in catalog provider

We are setting up authentication for the Kubernetes cluster using the serviceaccount token. Create a serviceaccount in the developer-hub namespace

oc create sa developer-hub -n developer-hub

Obtain a long-lived token by creating a secret

oc apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: developer-hub-sa
  namespace: developer-hub
  annotations:
    kubernetes.io/service-account.name: developer-hub
type: kubernetes.io/service-account-token
EOF

Add a new entry in the extraEnvVars to mount the serviceaccount token secret as an environment variables in the values file under upstream.backstage section

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

upstream:
  backstage:
    ...
    extraEnvVarsSecrets:
      - rhdh-secrets
    extraAppConfig:
      - configMapRef: app-config-rhdh
        filename: app-config-rhdh.yaml
    extraEnvVars:
      - name: BACKEND_SECRET
        valueFrom:
          secretKeyRef:
            key: backend-secret
            name: '{{ include "janus-idp.backend-secret-name" $ }}'
      - name: POSTGRESQL_ADMIN_PASSWORD
        valueFrom:
          secretKeyRef:
            key: postgres-password
            name: '{{- include "janus-idp.postgresql.secretName" . }}'
      - name: KUBE_TOKEN
        valueFrom:
          secretKeyRef:
            key: token
            name: developer-hub-sa

Update the app-config-rhdh configmap with below configuration

kubernetes:
  serviceLocatorMethod:
    type: "multiTenant"
  clusterLocatorMethods:
    - type: "config"
      clusters:
        - url: https://api.example.com:6443
          name: acm
          authProvider: "serviceAccount"
          skipTLSVerify: true
          serviceAccountToken: ${KUBE_TOKEN}
          dashboardApp: openshift
          dashboardUrl: https://console-openshift-console.apps.example.com/
catalog:
  providers:
    ocm:
      default:
        kubernetesPluginRef: acm #same as the clusters name in kubernetes section
        name: multiclusterhub
        owner: group:ops
        schedule:
          frequency:
            seconds: 10
          timeout:
            seconds: 60

Re-installing the chart will recreate a new pod with updated values and mount serviceaccount token secret as an environment variable

helm upgrade --install developer-hub developer-hub/developer-hub -f values.yaml

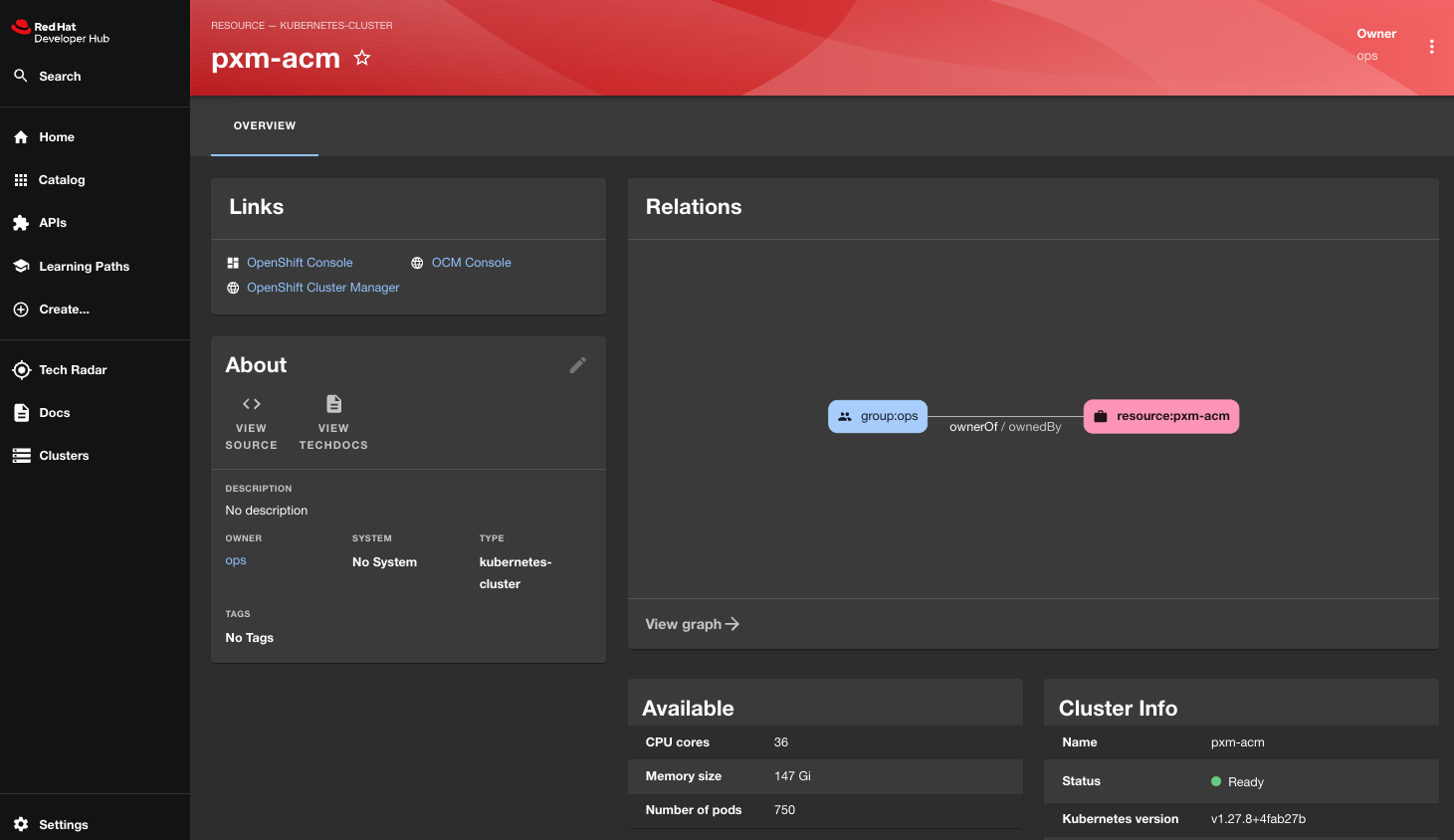

Alt text
Multicluster

Synchronizing with ArgoCD

The ArgoCD Backstage plugin provides synced, health status and updates the history of your services to your Developer Portal.

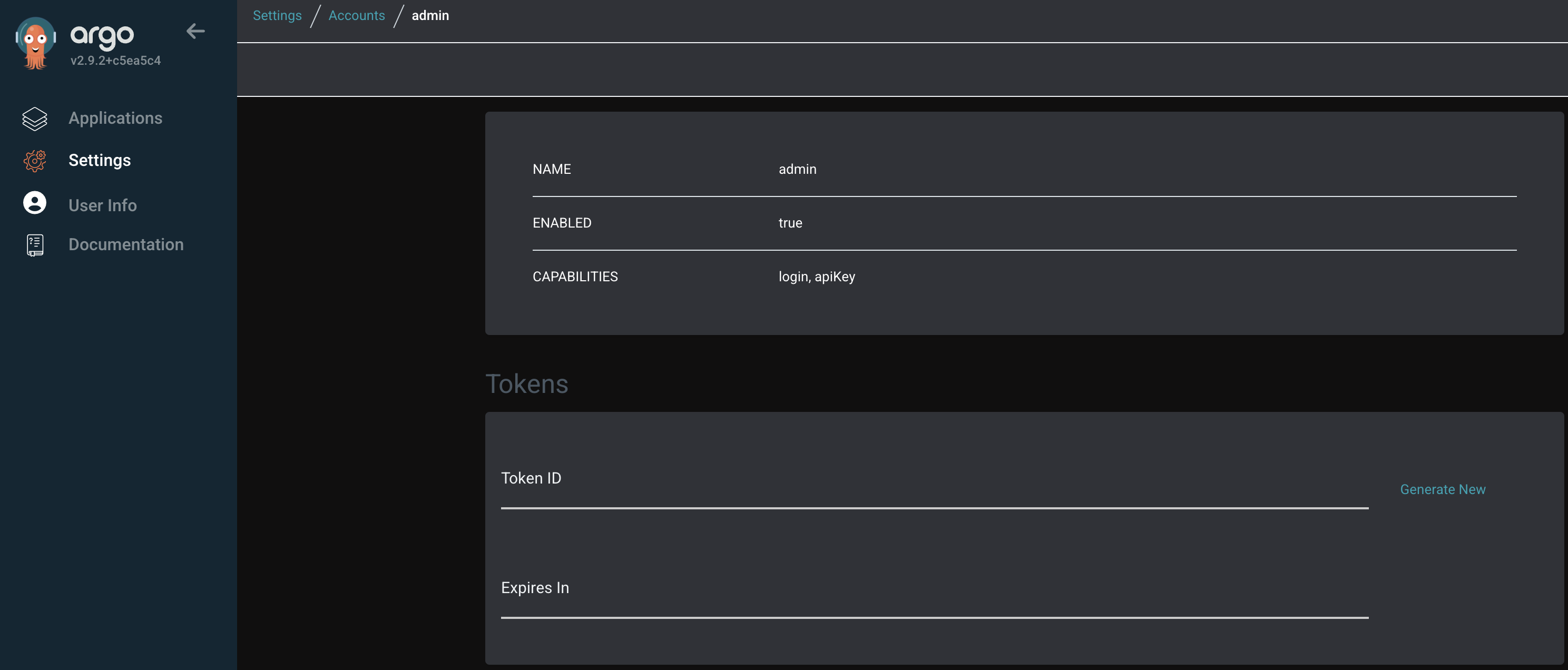

Generate a new token from the ArgoCD instance

Alt text
ArgoCD token

Create a new secret from the ArgoCD token

oc create secret generic argocd-token --from-literal=ARGOCD_TOKEN=dummy

Add a new entry in the extraEnvVars to mount the secret as an environment variables in the values file under upstream.backstage section

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

upstream:
  backstage:
    ...
    extraEnvVarsSecrets:
      - rhdh-secrets
    extraAppConfig:
      - configMapRef: app-config-rhdh
        filename: app-config-rhdh.yaml
    extraEnvVars:
      - name: BACKEND_SECRET
        valueFrom:
          secretKeyRef:
            key: backend-secret
            name: '{{ include "janus-idp.backend-secret-name" $ }}'
      - name: POSTGRESQL_ADMIN_PASSWORD
        valueFrom:
          secretKeyRef:
            key: postgres-password
            name: '{{- include "janus-idp.postgresql.secretName" . }}'
      - name: KUBE_TOKEN
        valueFrom:
          secretKeyRef:
            key: token
            name: developer-hub-sa
      - name: ARGOCD_TOKEN
        valueFrom:
          secretKeyRef:
            key: ARGOCD_TOKEN
            name: argocd-token

Update the app-config-rhdh configmap with below configuration

argocd:
  appLocatorMethods:
    - instances:
        - name: main
          token: ${ARGOCD_TOKEN}
          url: https://openshift-gitops-server-openshift-gitops.apps.example.com
      type: config

Re-installing the chart

helm upgrade --install developer-hub developer-hub/developer-hub -f values.yaml

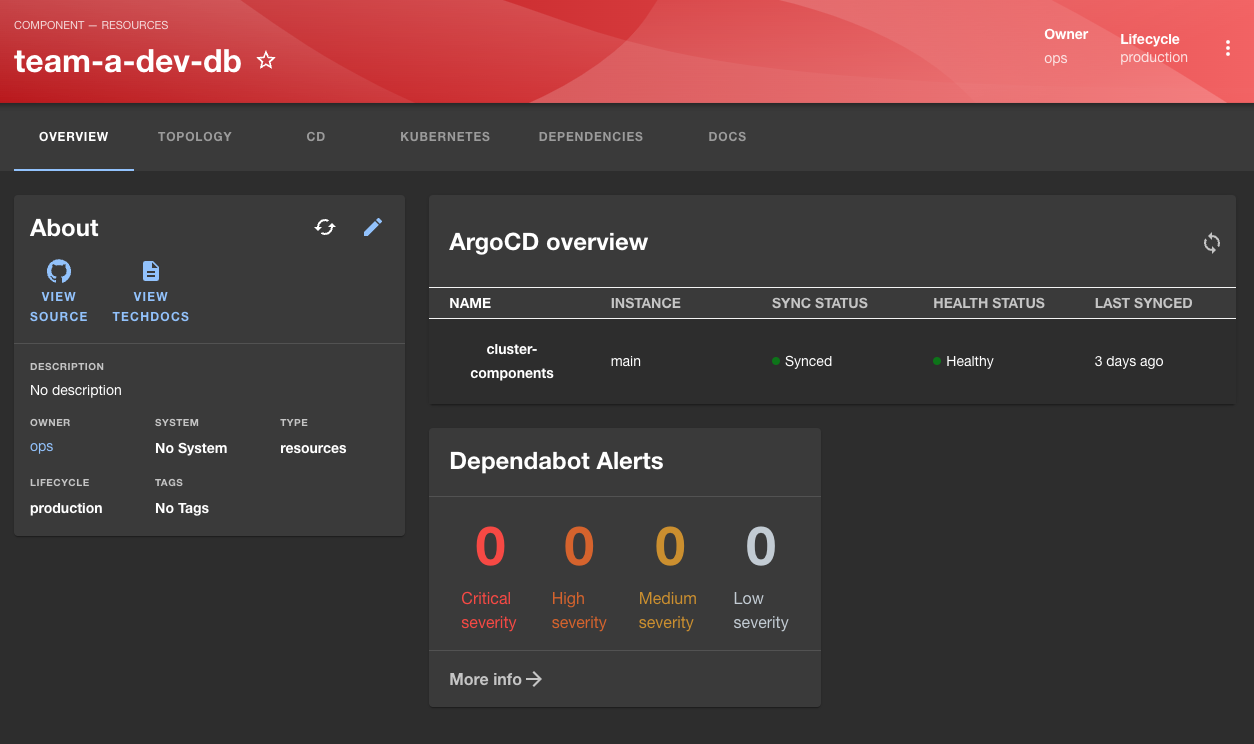

Alt text
ArgoCD

Conclusion

🛠️ That’s a Wrap for Part 1! Stay Tuned for Part 2

In Part 1, we’ve navigated through installation, enabled plugins, configured the integration, and set the stage for a seamless developer experience.

In our upcoming Part 2, we’ll dive into the magic of software template creation.
