Recently I came across tektoncd project, The Tekton Pipelines project provides Kubernetes-style resources for declaring CI/CD-style pipelines caught my attention, and I started playing with it.

Basic Concepts #

To create a Tekton pipeline, one does the following:

Create custom or install existing reusable Tasks
Create a Pipeline and PipelineResources to define your application’s delivery pipeline
Create a PipelineRun to instantiate and invoke the pipeline

Installing Tekton on OpenShift #

oc new-project tekton-pipelines
oc adm policy add-scc-to-user anyuid -z tekton-pipelines-controller
oc apply --filename https://storage.googleapis.com/tekton-releases/latest/release.yaml

Install dashboard #

The dashboard is a general-purpose, web-based UI for Tekton Pipelines. Tekton also has cli client

curl -L https://github.com/tektoncd/dashboard/releases/download/v0/gcr-tekton-dashboard.yaml | oc apply -f -

Expose tekton-dashboard service as a route

oc expose service tekton-dashboard \
  -n tekton-pipelines \
  --name "tekton-dashboard" \
  --port="http"

Create pipeline #

This pipeline builds an image from the source and starts a new rollout.

Create a new project

oc new-project tektontutorial

Create a service account for running pipelines and enable it to run privileged pods for building images

oc create serviceaccount pipeline
oc adm policy add-scc-to-user privileged -z pipeline
oc adm policy add-role-to-user edit -z pipeline

Optionally, create OpenShift objects(i.e DeploymentConfig, ImageStream, Service, Route)

---
apiVersion: image.OpenShift.io/v1
kind: ImageStream
metadata:
  labels:
    app: go-sample
  name: go-sample
---
apiVersion: apps.OpenShift.io/v1
kind: DeploymentConfig
metadata:
  labels:
    app: go-sample
  name: go-sample
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    app: go-sample
    deploymentconfig: go-sample
  strategy:
    activeDeadlineSeconds: 21600
    resources: {}
    rollingParams:
      intervalSeconds: 1
      maxSurge: 25%
      maxUnavailable: 25%
      timeoutSeconds: 600
      updatePeriodSeconds: 1
    type: Rolling
  template:
    metadata:
      labels:
        app: go-sample
        deploymentconfig: go-sample
    spec:
      containers:
        - image: go-sample:latest
          imagePullPolicy: Always
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 45
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          name: go-sample
          ports:
            - containerPort: 8080
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 45
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 5
          resources: {}
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
  test: false
  triggers:
    - imageChangeParams:
        containerNames:
          - go-sample
        from:
          kind: ImageStreamTag
          name: go-sample:latest
          namespace: tektontutorial
      type: ImageChange
    - type: ConfigChange
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: go-sample
  name: go-sample
spec:
  ports:
    - name: 8080-tcp
      port: 8080
      protocol: TCP
      targetPort: 8080
  selector:
    app: go-sample
    deploymentconfig: go-sample
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: route.OpenShift.io/v1
kind: Route
metadata:
  labels:
    app: go-sample
  name: go-sample
spec:
  port:
    targetPort: 8080-tcp
  to:
    kind: Service
    name: go-sample
    weight: 100

oc apply -f go-sample-template.yml

The deployment will not be complete since there are no container images for the go-sample app.

Create a s2i-go, OpenShift-cli task. You can find more examples of reusable tasks in the Tekton Catalog and OpenShift Catalog repositories.

Note: Tasks consist of several steps that get executed sequentially. The pipeline will perform each task in a separate container within the same pod.

oc apply -f https://raw.githubusercontent.com/OpenShift/pipelines-catalog/master/s2i-go/s2i-go-task.yaml
oc create -f https://raw.githubusercontent.com/tektoncd/catalog/master/OpenShift-client/OpenShift-client-task.yaml

Create pipeline resources

---
apiVersion: tekton.dev/v1alpha1
kind: PipelineResource
metadata:
  name: go-sample-image
spec:
  type: image
  params:
    - name: url
      value: image-registry.OpenShift-image-registry.svc:5000/tektontutorial/go-sample
---
apiVersion: tekton.dev/v1alpha1
kind: PipelineResource
metadata:
  name: go-sample-git
spec:
  type: git
  params:
    - name: url
      value: https://github.com/go-training/helloworld

oc apply -f resources.yml

Create pipeline; pipelines have two tasks here build and deploy. Build uses s2i-go task to create an image from source and deploy uses OpenShift-client task to rollout latest deployment of go-sample

apiVersion: tekton.dev/v1alpha1
kind: Pipeline
metadata:
  name: go-sample-pipeline
spec:
  resources:
    - name: app-git
      type: git
    - name: app-image
      type: image
  tasks:
    - name: build
      taskRef:
        name: s2i-go
        kind: Task
      params:
        - name: TLSVERIFY
          value: "false"
      resources:
        inputs:
          - name: source
            resource: app-git
        outputs:
          - name: image
            resource: app-image
    - name: deploy
      taskRef:
        name: OpenShift-client
        kind: ClusterTask
      runAfter:
        - build
      params:
        - name: ARGS
          value: "rollout latest go-sample"

oc apply -f go-sample-pipeline.yml

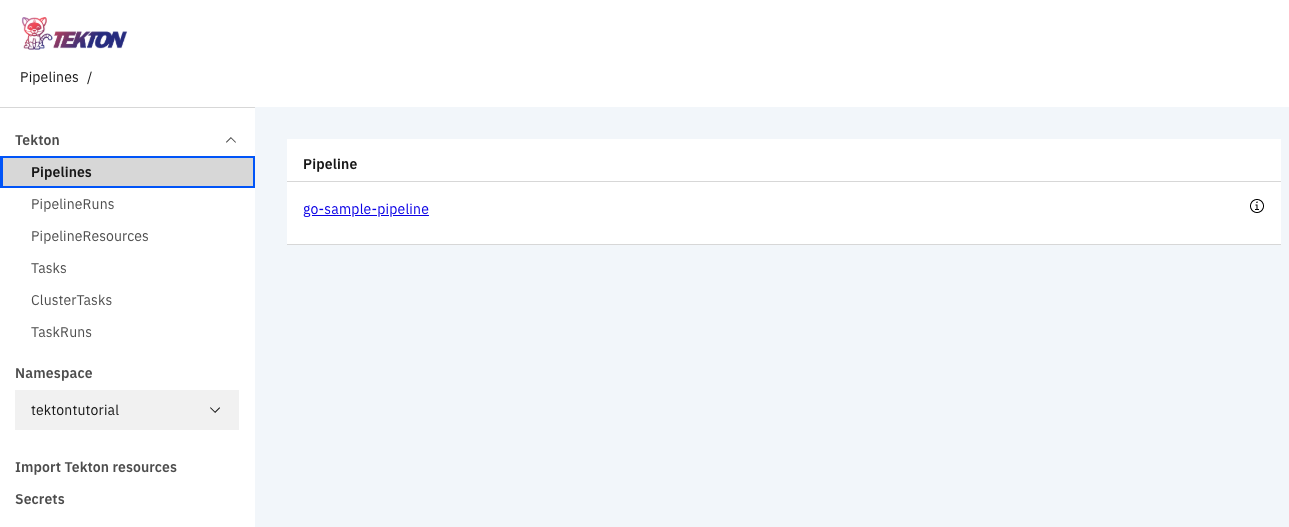

Start pipeline on the dashboard or by tektoncli

tkn pipeline start go-sample-pipeline \
    -r app-git=go-sample-git -r app-image=go-sample-image \
    -s pipeline

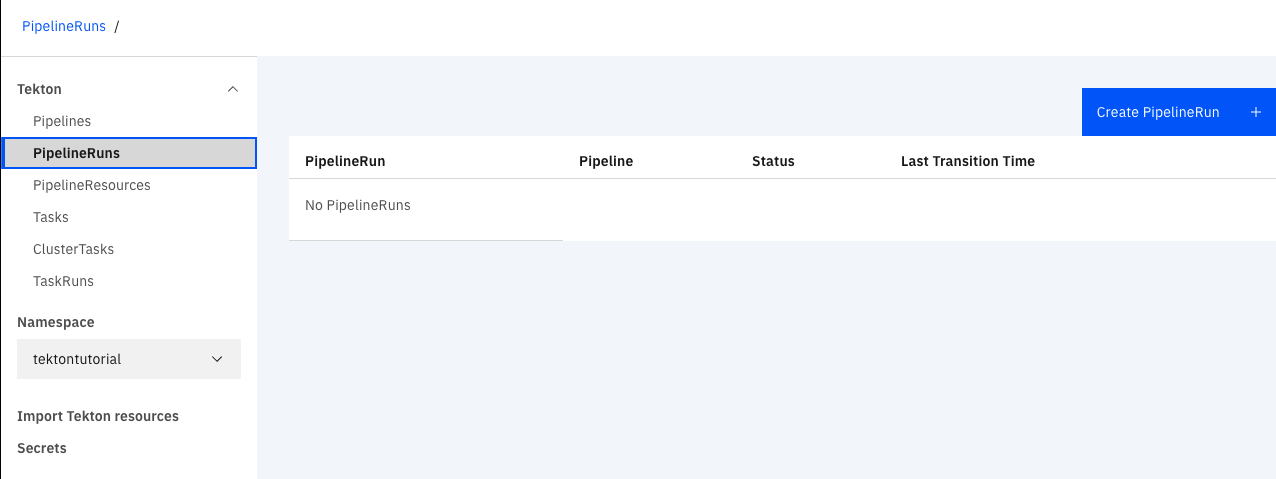

Click on Create PipelineRun, select pipeline, resources, and service account and start the pipeline.

Once finished, you should see all tasks marked in green.

The go-sample deployment should have one running pod.
